Geotechnical Software - Raft Foundation

The GEMSai Raft Foundation software utilizes cutting-edge finite element modelling techniques, ensuring accurate analysis and design. The analysis is carried out by idealizing the raft as an elastic plate of finite rigidity resting on soil sub grade. Our software offers multiple models for idealizing the soil support, including:

• Discrete Spring Bed Model (Winkler Model): Utilizing modulus of subgrade reaction to simulate soil support.
• Elastic half–space model: Representing the subsoil as an elastic, homogeneous, isotropic, and semi-infinite medium, considering elastic modulus and Poisson ratio.
• Multi-layer subsoil system: Accounting for the actual subsoil profile by incorporating layers such as clay, sand, and rock, using property data obtained from field and laboratory investigations.

Complexity Simplified

The settlement and bending behaviour of a raft depends significantly on its thickness and the nature of soil support. The differential equation governing the flexture of a thin raft is

 

 where: is the flextural rigidity of the plate.  
  E is the Young’s modulus
 ν being Poisson ratio
  h signifies the raft thickness
 p_s denotes the soil reaction,
 q represents the external load on the plate.

Solution through Numerical Method

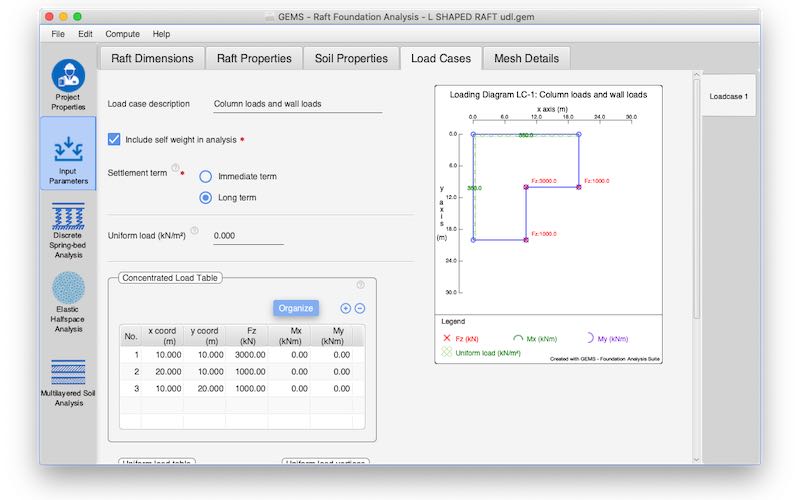

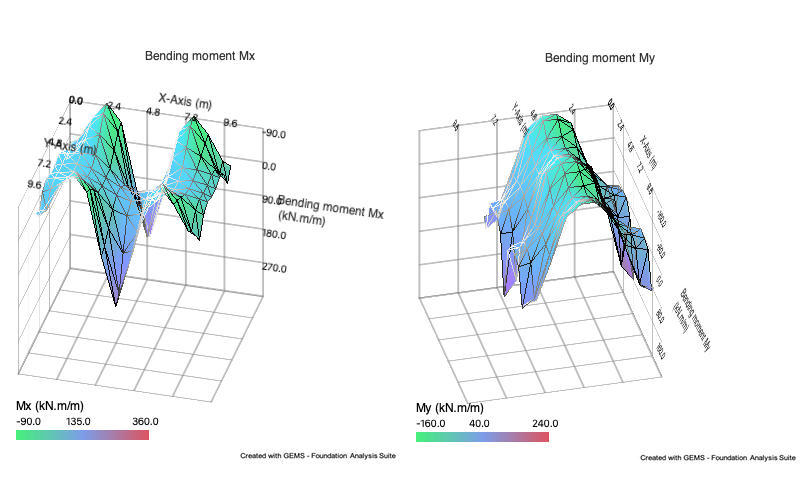

Here, GEMSai shines with its implementation of finite element modelling based on Mindlin’s plate theory. The raft foundation is discretized into number of bilinear quadrilateral plate elements, with each of its node having three degrees of freedom, vertical displacement and rotations about x and y axis sufficient to represent the deformed shape of the raft. Our software facilitates the consideration of thick or thin plates of various geometric configurations, load scenarios, and soil-structure interactions. Concentrated vertical loads and moments, line loads, and distributed vertical loads can be imposed on the raft. Different soil support models could be combined with the raft and the integrated system analysed considering effects of soil- structure interaction. Furthermore, automatic mesh generation capabilities simplify usage, ensuring seamless integration into engineering workflows while delivering accurate and reliable results.

With GEMSai Raft Foundation analysis software, engineers are equipped to conquer the complexities of foundation analysis and design, empowering them to realize their vision for safe, resilient, and sustainable structures.

Method of Analysis

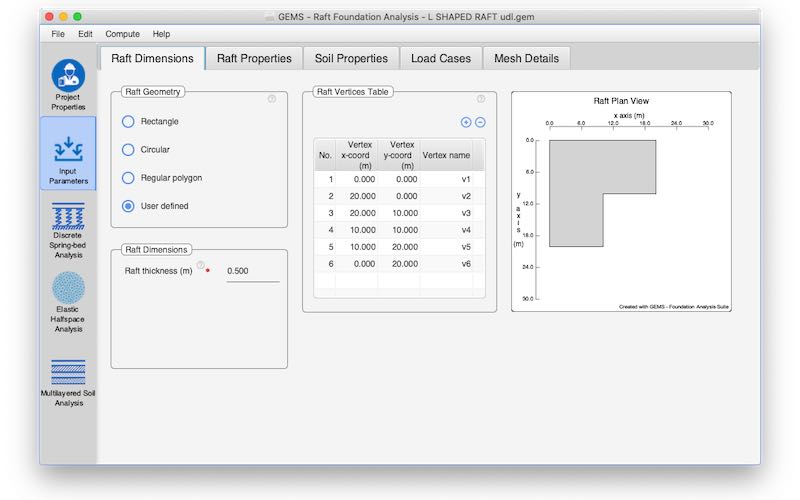

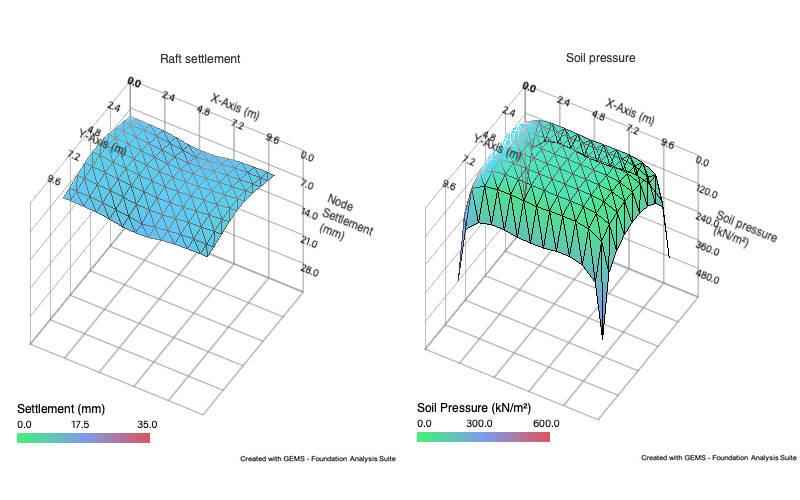

Finite element formulation is used in which raft is divided in to a number of quadrilateral plate elements. Division into quadrilateral elements enables raft of different shapes - rectangular, circular, polygonal, user-defined to be considered. The soil support stiffness is obtained based on the selected soil model. Both structural and soil stiffness are combined to obtain the overall stiffness of the system. The equilibrium equations are then solved where the knowns are the applied loads and the unknowns are the raft displacements.

Analysis and design of a raft foundation involves consideration of flexural rigidity of the raft and nature of sub-soil profile at the site. The raft is modelled as a plate in structural analysis. Raft foundation transfers stresses to greater depths in soil and the deformation properties of soil with in the zone of influence need to be considered. Below mentioned three types of soil support models are supported by the software.

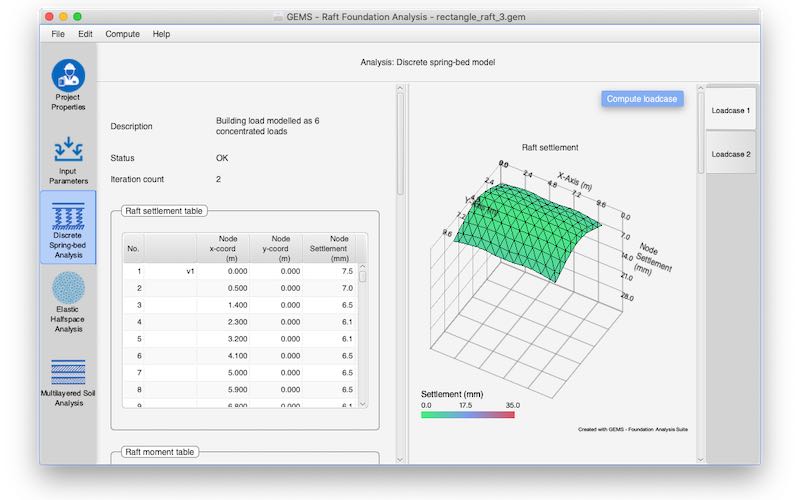

Subgrade reaction theory based on discrete spring-bed model

In the discrete spring-bed model, the soil support is idealized as a linear spring bed. The stiffness of the soil support is characterized by the equation p_s=k_sw , where k_s represents the modulus of subgrade reaction. This model, also known as the Winkler model, does not fully account for the continuity present in the soil mass. Due to the extended stressed zone beneath the raft, selecting a representative value for k_s is necessary.

Elastic half-space model

In this approach the subsoil is replaced by a homogeneous, isotropic elastic half-space characterised by an elastic modulus and a Poisson ratio. This model considers the continuous nature of the soil medium and determines the soil support stiffness based on Boussinesq’s equation for vertical displacement. Similarly, due to the deep stressed zone beneath the raft, choosing representative values for the Young’s modulus and Poisson ratio for the underlying soil becomes imperative.

Multi-layered soil model

Raft foundations transfer stresses to greater depths within the soil, necessitating the consideration of deformation properties of all soil layers within the zone of influence. The ‘Multi-layer soil model’ is based on the sub-surface soil profile at the location and utilizes data obtained from comprehensive field and laboratory investigations.

The settlements may be expressed as

For elastic behaviour ε_z is calculated as:

Sand and rock layers are modelled by using appropriate values of elastic modulus and Poisson ratio for each layer.

In clay layers immediate behaviour is modelled by using un-drained elastic modulus E_u and un-drained Poisson ratio v_u=0.5. The long term behaviour in clay layers is modelled by using the following conventional equation

In which m_v is coefficient of volume compressibility of the clay and 𝜎_z is the increase in the vertical stress. The settlement can then be computed by summation across all layers (n):
